WHD-10
HDMI/VGA/SDI Hard Disk Video Recorder Parameter Table |
|
Product Model |
WHD-10 |
|
Operating System |
Linux |
System
characteristics |
4 channels video input；Multi-signals displaying；
Multiplayer network operation；Backups in USB device. |
Operation
Interface |
16-bit true color graphical user interface |
|
Display:1/4 screen |
|
Operation：Panel control/mouse/wireless mouse |
|
Video Input |
Ports：2×HDMI(1080P/60Hz),1×VGA(1080P/60Hz),1×SDI(1080P/30/25Hz) |
|
record parameter |
resolution：Support up to 1080P 30/25Hz; 6 choices of video quality |
|
compression:H.264 |
|
Audio Input |
4 channels analog audio RCA;
The corresponding analog audio should be input when input the video form SDI;
Mixed recording is allowed in HDMI |
|
HDCP Protocol |
All kinds of encrypted video can be recorded |
|
Video Output |
Ports：1×BNC，1×VGA,1×HDMI(1920*1080)HD output |
|
Audio Output |
Ports：1×RCA(200-3000mV，5KΩ) |
|
Audio quality：G.711A |
Video recording
Mode |
Automatic Real-time Recording on 4 Different Channels |
|
Manual Control/Unified Configuration/Timing Recording |
The starting time of the each video can be set manually in 4 channels.
The maximum recording time of a single file can be 120 minutes. |
|
Monitor Mode：Dynamic detection recording |
Detection: 192 (16*12) detection areas for each picture;
multi-level sensitivity can be set |
|
Storage |
Support for installing two 3.5-inch SATA hard drives ，maximum support 3TB |
|
CIF： 4-5G per day each channel D1：8-20G per day each channel |
|
960H:12G-30G per day each channel 720P：10G-42G per day each channel |
|
1080P:40G per day each channel Audio：691.2MB per day each channel |
|
Backup Mode |
Mobile Hard Disk, USB driver, USB Logging, SATA Logging, Network Backup |
|
File format：H.264/AVI |
|
Backup speed：3GB/h |
|
Video playback |
Query mode: time point search, calendar search, event search, channel search |
Playback mode: 4 channels real-time playback,
radio any channel amplification playback |
|
Video quality：1080P/720P/960H/D1/HD1/CIF/QCIF |
|
Alarm |
Input×4 ; Output×1 |
|
Net Connectivity |
Ports: 1×network interface 10M/100M/1000M adaptive Ethernet port |
|
Communications: 1×RS-485, multiple platform protocols |
|
Net protocol：TCP/IP, UDP, DHCP, DNS, PPPOE, DDNS,Email protocol |
|
Remote Control Equipment: Computer, Android/IOS Mobile Phone |
Internet, remote recording, live broadcasting, on demand,
capture, download, setup management, etc. |
|
Mobie phone：Symbian、IOS、Windows mobile、blackberry、Andriod phone |
Password users can be set up and support up to 10 users.
Main stream and sub stream transmission are available. |
|
USB Ports |
3×USB for mouse、mobile hard disk or other USB device |
|
Power Supply |
12V/4A； Wattage：15 W(without HDD)； |
|
Environment |
Temperature：0℃-＋55℃；Humidity：10%-90%；
Atmospheric pressure：86kpa-106kpa |
Dimensions
Weight |
Length x Width x Height:370×300×70mm
Weight:3kg（6.6lb）without HDD |
|
Accessories |
12V4A power adapter, power cord, mouse,Hard Disk Data Wire,
Hard Disk Power Wire, Hard Disk Fixed Screw. |

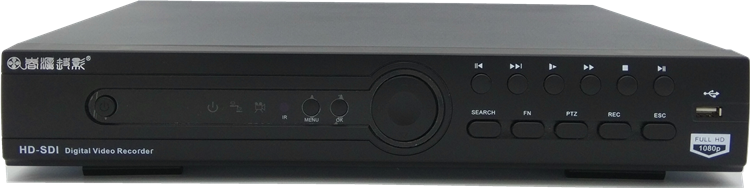

Front Features
|
 |
Back Features
|
 |
